Flats

Flats

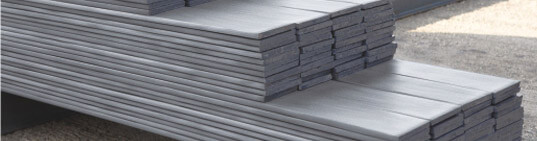

Mankrida Steel supplies a wide range of Mild Steel (MS) Flat Bars. MS Flat Bars are used by Grating manufactures, cable trays, bright bar industries, automobile and auto-ancillaries, Truck trailers, Tippers, Railways, bus body, elevators and escalators, Scaffolding manufacturers, Base plates, Earthing material, Ship building, washers, flanges,clamps and many more engineering industries.

Size in mm	Average Weight
	KG/MTR	KG/FT
20 x 4	0.79	0.24
20 x 5	0.79	0.24
21 x 6	1.00	0.30
25 x 3	0.59	0.19
25 x 4	0.79	0.24
25 x 5	0.98	0.30
25 x 6	1.18	0.40
25 x 8	1.57	0.50
25 x 10	1.9	0.6
25 x 12	2.36	0.70
28 x 6	1.30	0.40
30 x 3	0.71	0.22
30 x 4.7	1.11	0.34
30 x 5	1.18	0.40
30 x 60	1.40	0.40
32 x 5	1.26	0.40
32 x 6	1.50	0.50
32 x 8	2	0.60
32 x 10	2.50	0.80
32 x 12	3	0.90
38 x 3	0.90	0.30
38 x 5	1.50	0.50
38 x 12	3.60	1.10
40 x 4	1.26	0.38
40 x 5	1.57	0.50
40 x 6	1.90	0.60
40 x 8	2.50	0.80
40 x 10	3.10	1.00
40 x 12	3.77	1.20
40 x 16	5.00	1.50
40 x 20	6.30	1.90
40 x 25	7.85	2.40
45 x 12	4.20	1.30
45 x 20	7.07	2.15
50 x 4	1.57	2.00
50 x 5	1.96	0.60
50 x 6	2.36	0.70
50 x 8	3.14	1.00
50 x 10	3.90	1.20
50 x 12	4.7	1.40
50 x 16	6.28	1.90
50 x 20	7.85	2.40
50 x 25	9.80	3.00
50 x 32	12.56	3.83
60 x 6	2.83	0.87
63 x 6	3	0.9
65 x 5	2.55	0.78
65 x 6	3.06	0.93
65 x 8	4.08	1.2
65 x 10	5.1	1.6
65 x 12	6.10	1.90
65 x 16	8.16	2.5
65 x 20	10.2	3.1
65 x 25	12.8	3.9
65 x 32	16.33	4.98
65 x 40	20.41	6.22
65 x 50	25.51	7.78
75 x 5	5.7	1.7
75 x 6	3.53	1.10
75 x 8	4.71	1.4
75 x 10	5.89	1.8
75 x 12	7.70	2.10
75 x 16	9.42	2.90
75 x 20	11.8	3.6
75 x 25	14.7	4.5
75 x 32	18.9	4.5
75 x 40	23.6	7.2
75 x 50	29.44	8.97
80 x 8	5.02	1.53
80 x 10	6.28	1.97
100 x 5	3.93	1.2
100 x 6	4.71	1.4
100 x 8	6.28	1.9
100 x 10	7.85	2.4
100 x 12	9.42	2.90
100 x 16	12.56	3.8
100 x 20	15.70	4.80
100 x 25	19.60	6.00
100 x 30	23.55	7.18
100 x 32	25.12	7.66
100 x 40	31.40	9.57
100 x 50	39.25	11.96
125 x 6	5.90	1.80
125 x 8	7.90	2.40
125 x 10	9.80	3.00
125 x 12	11.80	3.60
125 x 16	15.70	4.80
125 x 20	19.60	6.00
125 x 25	24.50	7.50
125 x 32	31.40	9.57
125 x 40	39.25	11.96
130 x 12	12.25	3.73
150 x 6	7.07	2.20
150 x 8	9.42	2.90
150 x 10	11.80	3.60
150 x 12	14.10	4.30
150 x 16	18.80	5.70
150 x 20	23.60	7.20
150 x 25	29.40	8.90
150 x 32	37.68	11.48
150 x 40	47.10	14.36
160 x 30	37.68	11.94
178 X 6	8.38	2.56
178 X 8	11.18	3.41
180 X 12	16.96	5.17
180 X 20	28.26	8.62
200 x 6	9.40	2.90
200 x 8	12.56	3.80
200 x 10	15.70	4.80
200 x 12	18.80	5.70
200 x 16	25.10	7.70
200 x 20	31.40	9.60
200 x 25	39.20	12
250 x 6	11.80	3.60
250 x 8	15.70	4.80
250 x 10	19.60	6.00
250 x 12	23.60	7.20
250 x 16	31.40	9.60
250 x 20	39.20	12.00
250 x 25	49.10	15.00
300 x 6	14.10	4.30
300 x 8	18.80	5.80
300 x 10	23.55	7.20
300 x 12	28.30	8.60
300 x 16	37.70	11.50

Rolling Tolerances

Width Thickness Sectional weight Length up to 50 mm: ± 1 mm 50 mm to 75 mm: ± 1.5 mm 75 mm to 100 mm: ± 2 mm 100 mm and above ± 2% and maximum not exceding 6 mm up to 12 mm: ± 0.5 mm over 12 mm: 4% and max not exceeding 1.5 mm Up to 3 mm thick: +5/-3% Over 3 mm : ± 5% For fixed length : ± 100 mm

The data given above is indicative. Actual weights may vary. Mankrida Steel developes specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
